Single Beam Guard Rail Hot Dip Galvanized 550 Grams /Sq. Meter for Saudi Arabia Highway project

Single Beam Guard Rail is used for single direction guard rail system. We supply Hot Dip Galvanized Steel Single Beam Guard Rail (Single Sided - Double Rail) for highway projects in Saudi Arabia and other countries.

Single Beam Guard Rail Elements and Accessories:

Beam profile: Sheet thickness 3.58 mm, length 3810 mm and height is 310mm
Aluminum Reflectors, weather resistant. The distance between the one and the other is 3.81meters.
Supply of columns (C-Channel Post) of galvanized steel, each fitted 1.905 linear meters, with a 2.5 Meters high column, including 1 meter below the surface of the earth and 1.50 meters above the ground, the thickness of the column 5 mm and dimensions column 100 x 150 mm. the columns to be galvanized Including all fittings & accessories but not limited to the Tension accessories, Washers, Nuts & Bolts necessary for the installation of the guard rails according to the standard ASTM-A325.
Galvanized iron and zinc ratio min. 550 Grams /Sq. Meter.
All the Items are manufactured in accordance with the relevant international standards. Hot Dip Galv. Posts and beams profile according to criteria of ASTM.
Bolt & Nuts and all the accessories are supplied.
All the items are manufactured according to the relevant ASTM standard / Ministry of Transport Saudi Arabia.

Single sided w beam guardrail front view:

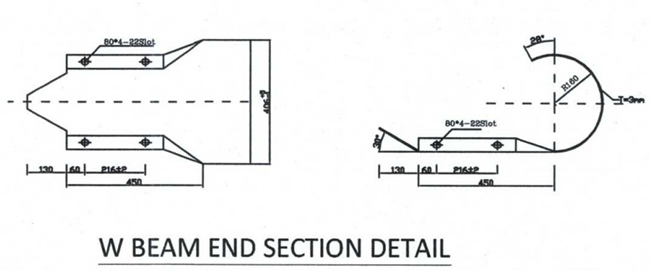

W beam end section detail

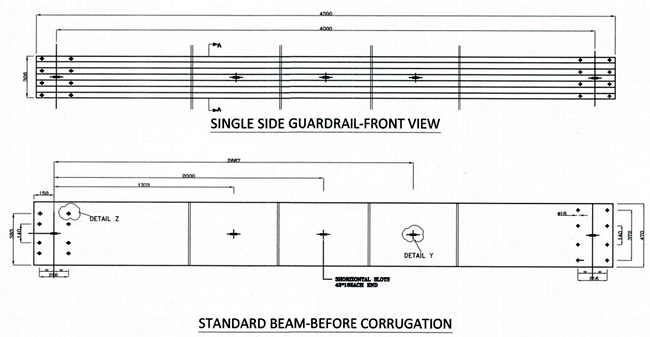

Single side guardrail-front view and standard beam-before corrugation

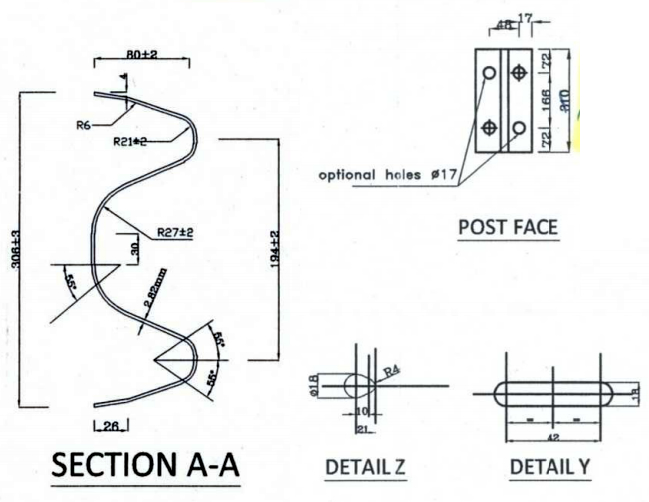

Post and w beam
