Double Wave Beam Metallic Guard Railings Hot Dipped Galvanized

Two Wave / Double Wave Beam Guard Rail is a semi rigid barrier, popularly used as highway safety barrier system applied in eliminating the threat from roadside hazards.

The Double Wave Beam Metallic Guard Railings is a type of guardrail designed. It is made up of two w-shaped galvanized steel beams that are connected using posts and a top rail. The two beams create an angular barrier that prevents vehicles from driving over the edge. The main specifications and dimensions are: Total length: 2,500mm; Top rail height: 812mm; Post spacing: 3m; Bottom rail height: 154mm; Beam width: 200mm; Beam thickness: 5mm.

Applications

The double wave steel plate beams are installed and fixed along the highways, dock areas, aisles, especially on curves and slopes for protection against run-off-road collisions. Using the double wave or two wave beam guardrail can absorb the crash energy, reduce risk and the deformation of the impacting vehicles.

We supply w-beam double wave single face single sided guard rail with beam post, spacer and hardware all galvanized.

Double Wave Profile:

Width mm Height mm Thickness mm
310 85 2.75
310 85 2.85
310 85 3

Modular Double Wave Beam Panel Sizes Applied to Barrier Guardrails:

Length 4100-4400mm
Wave width 300-600mm
Wave height 50-100mm
Thickness 2-6mm

Notes: Custom length, width, height and thickness are available per requirements.

Surface treatment: Galvanized, aluminized, static sprayed
Standards of zinc coating for hot galvanizing: min. 61um, 85um, or per request
Plate thickness: 3.0mm or 4.0mm

Double /Two Wave Metallic Guard Rails for Highways

Guard Railing Shapes:
Straight railings: Two Wave W Beam Metal Steel Guardrail Panels HDG Galv.

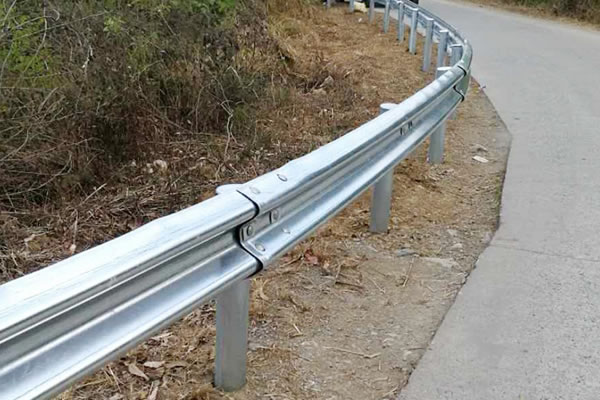

Arc / Bent Railing Barriers: Beam railing with double wave for Arc Shaped Barriers

Two wave guard railing, Pvc coated finish:


Two Wave Static Sprayed Metal Steel Guardrail Panels

Hot dipped galvanized finish:


W-beam/ Two Wave Road Guardrail, Q235 grade steel, 310mm x 85mm x 3mm thickness

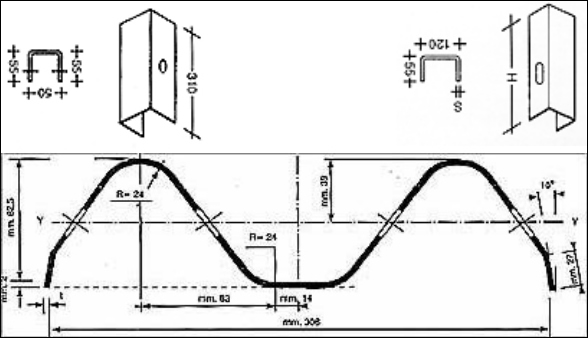

Double wave specifications



Double Wave Beam Guardrails Project Illustration

Traffic safety project in Greece
Double wave type metallic guardrails hot deeped galvanized

Double wave beam, type ARMCO:
Thickness of the beam min. 3 mm
The beam with necessary suitable holes to accept metalluic posts every 4 meters, 2 meters or 1.33 meters.
The weight of the beam is around 48 kgr.

Installation:
The beam is attached into the ground through metallic posts type U120, thickness 6 mm. The length (H) of the post is 1.75 meters, or 1.5 meters. The weith of the 1.75 meters beam is around 15 kgr

Connection of the beam to the post 55x50x55 mm. Metallic connection parts are hot deeped galvanized. The weight of the connection element is around 1100 gr. The thickness is 3 mm.
