Guard Rail Accessories

As a specialized manufacturer of complete system of Highway Guardrail Crash barrier, Safety Barrier, Road Barrier, we supply all the steel components for highway guardrail, W section beam, sigma post, C post, tube or I beam post, bullnose, terminals, bridge conector, u spacers, associated steel wire rope sling, mushroom bolt, hex bolt and nuts.

Highway guard rail accessories are classified into three main types: Type I guardrail accessories are made of steel, Type II accessories are made of a combination of steel and aluminum, and Type III accessories are typically made of recycled plastic. Maintenance for guardrail accessories varies depending on the type and should be checked periodically to make sure they are in proper working order.

Guard Rails System Accessories

Road Guard Rail Detail of accessories:
Cold Coil GI Roll – 2.8 mm thk. 610 mm width
I beam, width 150x10mmx 6 m, 13.5mm thick
Bolt GI M16 x 25 mm with Nut and washer

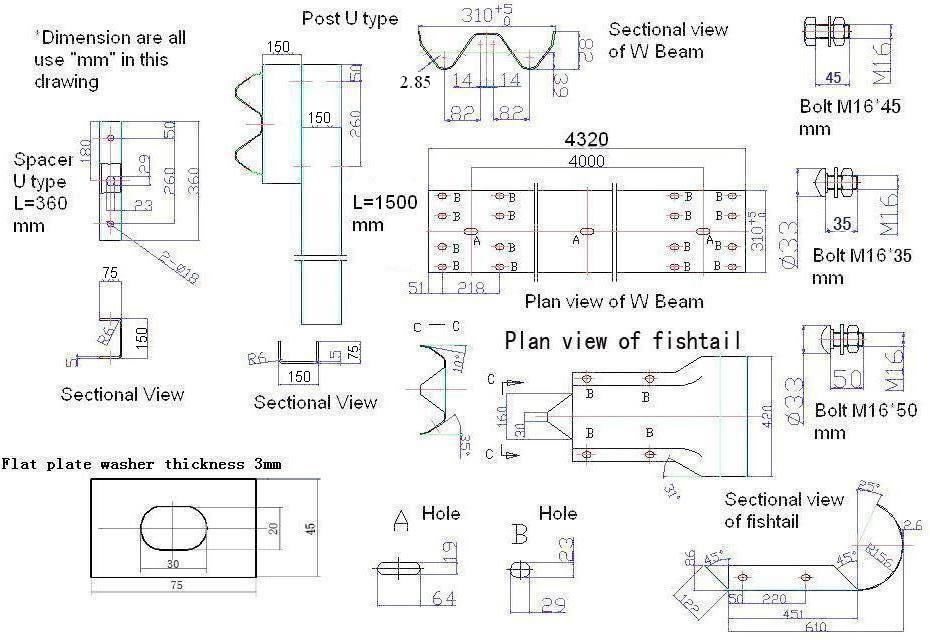

W Beam Guard Rails with All Accessories for Road Guard Rail Project
Galvanized W beam 3mm thickness, U Post, washer plate and other accessories.

Design per drawings：

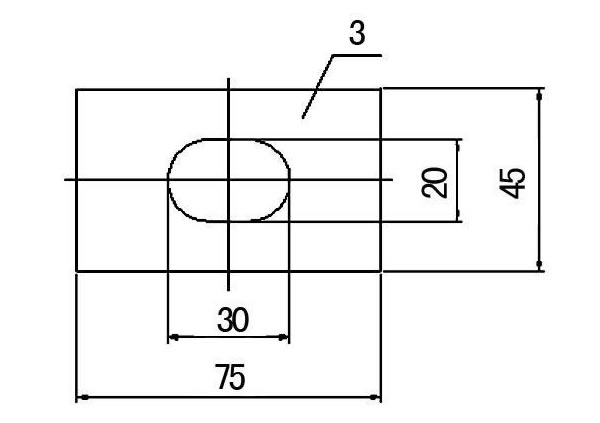

Washer plate per drawing:

Sigma post, C post, tube or I beam post for highway guardrail and road barrier

Guard rail post

Brackets, spacers, washers and bolts

Brackets:

Spacers:

Guardrail  Accessories

1. Guardrail Bracket
2. Powder Coated Post for Guardrails
3. Galvanized Column
4. Guardrail Spacers
5. Sigma Post for Guardrail
6. Steel Beam Posts
